AUXILIARY TANK
and MX-1
_________________________________________________
DATA SHEET

Fount dosing is used to control the pH level of the fountain solution.

The Auxiliary tank and MX-1 doser are available for both the Pressmate CS105 and CS210 circulators and can be installed as an upgrade on existing dampening units.

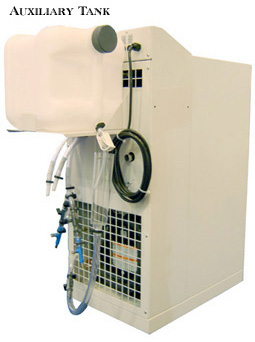

The Auxiliary Tank provides:
* 20 litre tank
* Manually filled with premixed solution
* Simple, cost effective dosing solution
* Simple, shelf mounted installation

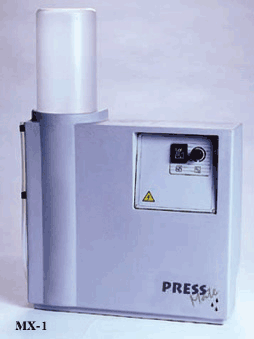

The MX-1 (Batch Doser) provides:
* Automatic additive doser 0-6%
* Enables autofilling of dampening unit
* Suitable for dosing all major fount solutions
* Simple fount percentage adjustment

* Standard voltages shown - other electrical specifications available on request.
* MGE can offer tailored solutions to exactly match customer requirements.

MGE reserve the right to change, improve and/or modify all or any products manufactured and sold by us at anytime; this does not incur any obligation on our part to make like changes to any of our products previously sold.
MX-1
Voltage
Water Inlet Pressure
Water Inlet Flow
230v, 1PH, 50/60Hz, 0.5A
0.5 to 4 bar
Additive Dosing:
0 to 6% (+/-1%)
Range
2 litres
Reservoir
Output
2 l/min
Mixing Tank Capacity
Weight
Dimensions (HxWxD) mm
4 litres
7 kg
590 x 410 x 130
8 to 12 l/min
