Supply
Accuracy
2 litre internal container
0 to 15%
+/- 1%
Range
CS105
_________________________________________________
DATA SHEET

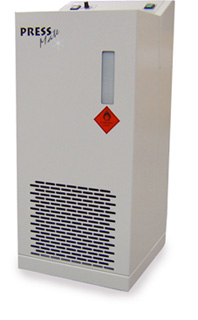

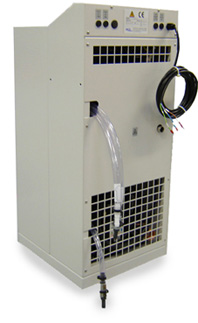

The CS105 is a water dampening circulator for use in offset lithographic processes. It provides refrigeration, circulation to and from the press, solution filtration and alcohol control.
The CS105 incorporates:
* 0.5kW of refrigeration using a simplified cooling coil
* 25 litre working capacity solution tank
* One press feed and suction return
* A choice of two alcohol systems for conventional printing
* A no alcohol option for alcohol free printing

* Standard voltages shown - other electrical specifications available on request.
* All feed and return connections to customer requirements
* All units use CFC-free refrigerant R134A
* Standard unit colour is light grey. Special paint finishes available on request
* MGE can offer tailored solutions to exactly match customer requirements.

A wide range of spare parts is available from MGE to complement new and existing Pressmate units.
Click on the images for a larger view.
Spare Parts

Composite Filter Bag

Order No: PSP3001



Hydrometer

1off - Order No:
PSP4162
10off - Order No: PSP3004

Alcohol Filter

Order No: PSP3003

Alcohol Solenoid Valve 240V

1off - Order No: PSP4091
5off - Order No: PSP3007

Plain Filter Bag

Order No: PSP3000



MGE reserve the right to change, improve and/or modify all or any products manufactured and sold by us at anytime; this does not incur any obligation on our part to make like changes to any of our products previously sold.

Alcohol Control and Alcohol Free
PRESSMATE dampening systems can be fitted with either the
MGE
Alcosystem or Alcomixer alcohol control system for conventional
printing. These proven systems deliver simple, accurate
(within +/- 1%) and consistent levels of alcohol control either
from a built-in supply bottle or from an external source.

PRESSMATE dampening systems can also be supplied without
alcohol control for alcohol free printing.

Supply to the Press
Fountain solution is pumped to the press and returned to the PRESSMATE dampening system by venturi suction. Individual connections are provided for each print unit and connection packs can be provided to service multiple print units from each feed.

Filtration
PRESSMATE dampening units are fitted with composite filter
bags to clean the returned fountain solution, remove
contaminates, prolong the life of the dampening solution and
reduce the difficulties associated with foaming.

Modern printing requires new, exacting demands from fountain solution. PRESSMATE dampening units provide stable, clean and cool fountain solution, have low alcohol consumption and precise temperature control, all necessary for high quality printing.

The cabinet redesign provides easy access with detachable, multiple piece panels which make the unit significantly more routine maintenance and service friendly. With MGE's proven alcohol control system and anti-foam filtration bags, the result is a simpler, better solution to support all your printing needs.

To complement the Pressmate dampening units, MGE offer Fount Dosing solutions, used to control the pH level of the fountain solution. The Auxiliary Tank and MX-1 dosers are available for the CS105 if fount dosing is required.

Fount Supply
No of Press Returns
No of Press Feeds
Press flow
1
Cooling System
Alcohol Control
Max Tank Volume
Condenser Unit
Heat Exchanger
Ambient for rating
Rating
0.5 kW
15 litres
Air cooled
Single coil
40ºC
Physical Information
Physical Dimensions
Dry Weight
Power Requirements (+/-15% on voltage)
3 l/min per outlet at 1.5m
980 x 400 x 440
65 kg
Connector Hose Length
Height of Hose Run
2.5m Max
15m Max
1
230v 50Hz, 1PH, 5.4A
